Product Name	Package	Insulation.	V_DRM (V) Min.	V_RRM (V) Min.	I_T(RMS) (A) Max.	I_TSM (A) Max.	I_GT (mA) @I~III Max.	I_GT (mA) @IV Max.	V_GT (V) Max.	V_TM (V) Max.	@I_T(A)	I_DRM (uA) @25℃@V_DRM Max.	I_RRM (uA) @25℃@V_RRM Max.	T_J (℃)	Status
BTA06A-800TW	TO-220A	Ins.	800	800	6	65	5	-	1.3	1.5	8	5	5	125	MP
BTA06A-800SW	TO-220A	Ins.	800	800	6	65	10	-	1.3	1.5	8	5	5	125	MP
BTA06A-800CW	TO-220A	Ins.	800	800	6	65	35	-	1.3	1.5	8	5	5	125	MP
BTA06A-800BW	TO-220A	Ins.	800	800	6	65	50	-	1.3	1.5	8	5	5	125	MP
BTA06A-600TW	TO-220A	Ins.	600	600	6	65	5	-	1.3	1.5	8	5	5	125	MP
BTA06A-600SW	TO-220A	Ins.	600	600	6	65	10	-	1.3	1.3	8	5	5	125	MP
BTA06A-600CW	TO-220A	Ins.	600	600	6	65	35	-	1.3	1.3	8	5	5	125	MP
BTA06A-600BW	TO-220A	Ins.	600	600	6	65	50	-	1.3	1.5	8	5	5	125	MP
BTA06-800CW	TO-220A	Ins.	800	800	6	60	35	-	1.5	1.6	6	5	5	125	MP
BTA12-800CW	TO-220A	Ins.	800	800	12	120	35	-	1.3	1.5	17	5	5	125	MP
BTA12-800BW	TO-220A	Ins.	800	800	12	120	50	-	1.3	1.5	17	5	5	125	MP
BTA12-600TW	TO-220A	Ins.	600	600	12	120	5	-	1.3	1.5	17	5	5	125	MP
BTA12-600SW	TO-220A	Ins.	600	600	12	120	10	-	1.5	1.7	17	5	5	125	MP
BTA12-600CW	TO-220A	Ins.	600	600	12	120	35	-	1.5	1.7	17	5	5	125	MP
BTA12-600BW	TO-220A	Ins.	600	600	12	120	50	-	1.5	1.7	17	5	5	125	MP
BTA100PT-1200BW	TO-247Plus	Ins.	1200	1200	100	1000	50	-	1.5	1.55	150	50	50	125	MP
BTA08A-800TW	TO-220A	Ins.	800	800	8	80	5	-	1.3	1.5	11	5	5	125	MP
BTA30A-800BW	TO-220A	Ins.	800	800	30	300	50	-	1.3	1.5	42	5	5	125	MP
BTA08A-800SW	TO-220A	Ins.	800	800	8	80	10	-	1.3	1.5	11	5	5	125	MP
BTA08-600BW	TO-220A	Ins.	600	600	8	80	50	-	1.3	1.5	11	5	5	125	MP
BTA08-600CW	TO-220A	Ins.	600	600	8	80	35	-	1.3	1.5	11	5	5	125	MP
BTA08-600SW	TO-220A	Ins.	600	600	8	80	10	-	1.3	1.5	11	5	5	125	MP
BTA08-600TW	TO-220A	Ins.	600	600	8	80	5	-	1.3	1.5	11	5	5	125	MP
BTA08-800BW	TO-220A	Ins.	800	800	8	80	50	-	1.3	1.5	11	5	5	125	MP
BTA08-800CW	TO-220A	Ins.	800	800	8	80	35	-	1.3	1.5	11	5	5	125	MP
BTA08-800SW	TO-220A	Ins.	800	800	8	80	10	-	1.3	1.5	11	5	5	125	MP
BTA08-800TW	TO-220A	Ins.	800	800	8	80	5	-	1.3	1.5	11	5	5	125	MP
BTA08A-600BW	TO-220A	Ins.	600	600	8	80	50	-	1.3	1.5	11	5	5	125	MP
BTA08A-600CW	TO-220A	Ins.	600	600	8	80	35	-	1.3	1.5	11	5	5	125	MP
BTA08A-600SW	TO-220A	Ins.	600	600	8	80	10	-	1.3	1.5	11	5	5	125	MP
BTA08A-600TW	TO-220A	Ins.	600	600	8	80	5	-	1.3	1.5	11	5	5	125	MP
BTA08A-800BW	TO-220A	Ins.	800	800	8	80	50	-	1.3	1.5	11	5	5	125	MP
BTA08A-800CW	TO-220A	Ins.	800	800	8	80	35	-	1.3	1.5	11	5	5	125	MP
BTA12-800SW	TO-220A	Ins.	800	800	12	120	10	-	1.3	1.5	17	5	5	125	MP
BTA12-800TW	TO-220A	Ins.	800	800	12	120	5	-	1.3	1.5	17	5	5	125	MP
BTA12A-1000BW	TO-220A	Ins.	1000	1000	12	120	50	-	1.5	1.5	17	5	5	125	MP
BTA12A-1200TW	TO-220A	Ins.	1200	1200	12	120	5	-	1.5	1.5	17	5	5	125	MP
BTA12A-1200SW	TO-220A	Ins.	1200	1200	12	120	10	-	1.5	1.5	17	5	5	125	MP
BTA12A-1200CW	TO-220A	Ins.	1200	1200	12	120	35	-	1.5	1.5	17	5	5	125	MP
BTA12A-1200BW	TO-220A	Ins.	1200	1200	12	120	50	-	1.5	1.5	17	5	5	125	MP
BTA12A-1600TW	TO-220A	Ins.	1600	1600	12	120	5	-	1.5	1.5	17	5	5	125	MP
BTA12A-1600SW	TO-220A	Ins.	1600	1600	12	120	10	-	1.5	1.5	17	5	5	125	MP
BTA12A-1600CW	TO-220A	Ins.	1600	1600	12	120	35	-	1.5	1.5	17	5	5	125	MP
BTA12A-1600BW	TO-220A	Ins.	1600	1600	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12B-600TW	TO-220B	No Ins.	600	600	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12B-600SW	TO-220B	No Ins.	600	600	12	120	10	-	1.5	1.5	17	5	5	125	MP
BTA12A-1000CW	TO-220A	Ins.	1000	1000	12	120	35	-	1.5	1.5	17	5	5	125	MP
BTA12A-600TW	TO-220A	Ins.	600	600	12	120	5	-	1.5	1.5	17	5	5	125	MP
BTA12A-600SW	TO-220A	Ins.	600	600	12	120	10	-	1.5	1.5	17	5	5	125	MP
BTA24A-600CW	TO-220A	Ins.	600	600	25	250	35	-	1.3	1.5	35	5	5	125	MP
BT16B-800BW	TO-220B	No Ins.	800	800	16	160	50	-	1.3	1.55	22.5	5	5	125	MP
BTA16-600CW	TO-220A	Ins.	600	600	16	160	35	-	1.3	1.5	22	5	5	125	MP
BTA16-600SW	TO-220A	Ins.	600	600	16	160	10	-	1.3	1.5	22	5	5	125	MP
BTA16-600TW	TO-220A	Ins.	600	600	16	160	5	-	1.3	1.5	22	5	5	125	MP
BTA16-800BW	TO-220A	Ins.	800	800	16	160	50	-	1.3	1.5	22	5	5	125	MP
BTA25T-1200BW	TO-3P	Ins.	1200	1200	25	250	50	-	1.3	1.8	35	10	10	125	MP
BTA24A-800TW	TO-220A	Ins.	800	800	25	250	5	-	1.3	1.5	35	5	5	125	MP
BTA24A-800SW	TO-220A	Ins.	800	800	25	250	10	-	1.3	1.5	35	5	5	125	MP
BTA24A-800CW	TO-220A	Ins.	800	800	25	250	35	-	1.3	1.5	35	5	5	125	MP
BTA25T-600BW	TO-3P	Ins.	600	600	25	250	50	-	1.3	1.8	35	10	10	125	MP
BTA16-800TW	TO-220A	Ins.	800	800	16	160	5	-	1.3	1.5	22	5	5	125	MP
BTA16-800SW	TO-220A	Ins.	800	800	16	160	10	-	1.3	1.5	22	5	5	125	MP
BTA24A-600BW	TO-220A	Ins.	600	600	25	250	50	-	1.3	1.5	35	5	5	125	MP
BTA20A-800CW	TO-220A	Ins.	800	800	20	200	35	-	1.3	1.5	28	10	10	125	MP
BTA16-800CW	TO-220A	Ins.	800	800	16	160	35	-	1.3	1.5	22	5	5	125	MP
BTA16-600BW	TO-220A	Ins.	600	600	16	160	50	-	1.3	1.5	22	5	5	125	MP
BTA24A-600TW	TO-220A	Ins.	600	600	25	250	5	-	1.3	1.5	35	5	5	125	MP
BTA24A-800BW	TO-220A	Ins.	800	800	25	250	50	-	1.3	1.5	35	5	5	125	MP
BTA24A-600SW	TO-220A	Ins.	600	600	25	250	10	-	1.3	1.5	35	5	5	125	MP
BTA41T-1200BW	TO-3P	Ins.	1200	1200	40	400	50	-	1.3	1.8	60	10	10	125	MP
BTA30J-800CW	TO-3P	Ins.	800	800	30	300	35	-	1.3	1.5	42	5	5	125	MP
BTA30J-800BW	TO-3P	Ins.	800	800	30	300	50	-	1.3	1.5	42	5	5	125	MP
BTA30J-600CW	TO-3P	Ins.	600	600	30	300	35	-	1.3	1.5	42	5	5	125	MP
BTA30J-600BW	TO-3P	Ins.	600	600	30	300	50	-	1.3	1.5	42	5	5	125	MP
BTA25T-800BW	TO-3P	Ins.	800	800	25	250	50	-	1.3	1.8	35	10	10	125	MP
BTB04S-800CW	TO-252	No Ins.	800	800	4	40	35	-	1.5	1.55	5.5	5	5	125	MP
BTB04S-800BW	TO-252	No Ins.	800	800	4	40	50	-	1.5	1.55	5.5	5	5	125	MP
BTB04S-600TW	TO-252	No Ins.	600	600	4	40	5	-	1	1.65	5	5	5	125	MP
BTA41T-800TW	TO-3P	Ins.	800	800	40	250	5	-	1.3	1.5	60	5	5	125	MP
BTA41T-1600BW	TO-3P	Ins.	1600	1600	40	400	50	-	1.3	1.5	60	10	10	150	MP
BTA41T-800BW	TO-3P	Ins.	800	800	40	250	50	-	1.3	1.5	60	5	5	125	MP
BTB10S-800SW	TO-252	No Ins.	800	800	10	100	10	-	1.5	1.55	14	5	5	125	MP
BTB10S-800CW	TO-252	No Ins.	800	800	10	100	35	-	1.5	1.55	14	5	5	125	MP
BTB10S-800BW	TO-252	No Ins.	800	800	10	100	50	-	1.5	1.55	14	5	5	125	MP
BTB08S-800TW	TO-252	No Ins.	800	800	8	80	5	-	1.5	1.55	11	5	5	125	MP
BTB08S-800SW	TO-252	No Ins.	800	800	8	80	10	-	1.5	1.55	11	5	5	125	MP
BTB08S-800CW	TO-252	No Ins.	800	800	8	80	50	-	1.5	1.55	11	5	5	125	MP
BTB08S-800BW	TO-252	No Ins.	800	800	8	80	50	-	1.5	1.55	11	5	5	125	MP
BTB04S-800TW	TO-252	No Ins.	800	800	4	40	5	-	1.5	1.55	5.5	5	5	125	MP
BTB06S-800BW	TO-252	No Ins.	800	800	6	60	50	-	1.5	1.55	8	5	5	125	MP
BTB06S-800CW	TO-252	No Ins.	800	800	6	60	35	-	1.5	1.55	8	5	5	125	MP
BTB06S-800SW	TO-252	No Ins.	800	800	6	60	10	-	1.5	1.55	8	5	5	125	MP
BTB06S-800TW	TO-252	No Ins.	800	800	6	60	5	-	1.5	1.55	8	5	5	125	MP
BTB12S-800BW	TO-252	No Ins.	800	800	12	120	50	-	1.5	1.55	17	5	5	125	MP
BTB12F-800TW	TO-220F	No Ins.	800	800	12	120	5	-	1.3	1.5	12	5	5	125	MP
BTB12F-800SW	TO-220F	No Ins.	800	800	12	120	10	-	1.3	1.5	12	5	5	125	MP
BTB12F-800CW	TO-220F	No Ins.	800	800	12	120	35	-	1.3	1.5	12	5	5	125	MP
BTB10S-800TW	TO-252	No Ins.	800	800	10	100	5	-	1.5	1.55	14	5	5	125	MP
BTB12F-800BW	TO-220F	No Ins.	800	800	12	120	50	-	1.3	1.5	12	5	5	125	MP
BTA12A-800BW	TO-220A	Ins.	800	800	12	120	50	-	1.5	1.5	17	5	5	125	MP
BTA12A-800CW	TO-220A	Ins.	800	800	12	120	35	-	1.5	1.5	17	5	5	125	MP
BTB16C-600TW	TO-220C	No Ins.	600	600	16	160	5	-	1.3	1.5	22	5	5	125	MP
BTB16C-600SW	TO-220C	No Ins.	600	600	16	160	10	-	1.3	1.5	22	5	5	125	MP
BTB16C-600CW	TO-220C	No Ins.	600	600	16	160	35	-	1.3	1.5	22	5	5	125	MP
BTB16C-600BW	TO-220C	No Ins.	600	600	16	160	50	-	1.3	1.5	22	5	5	125	MP
BTB12S-800TW	TO-252	No Ins.	800	800	12	120	5	-	1.5	1.55	17	5	5	125	MP
BTB12S-800CW	TO-252	No Ins.	800	800	12	120	35	-	1.5	1.55	17	5	5	125	MP
BTB12S-800SW	TO-252	No Ins.	800	800	12	120	10	-	1.5	1.55	17	5	5	125	MP
BTB24C-800CW	TO-220C	No Ins.	800	800	25	250	35	-	1.3	1.5	35	5	5	125	MP
BTB24C-800BW	TO-220C	No Ins.	800	800	25	250	50	-	1.3	1.5	35	5	5	125	MP
BTB24C-600TW	TO-220C	No Ins.	600	600	25	250	5	-	1.3	1.5	35	5	5	125	MP
BTB04S-600SW	TO-252	No Ins.	600	600	4	40	10	-	1	1.65	5	5	5	125	MP
BTB04S-600CW	TO-252	No Ins.	600	600	4	40	35	-	1	1.65	5	5	5	125	MP
BTB04S-600BW	TO-252	No Ins.	600	600	4	40	50	-	1	1.65	5	5	5	125	MP
BTB24C-600SW	TO-220C	No Ins.	600	600	25	250	10	-	1.3	1.5	35	5	5	125	MP
BTA12A-1000SW	TO-220A	Ins.	1000	1000	12	120	10	-	1.5	1.5	17	5	5	125	MP
BTB24C-600CW	TO-220C	No Ins.	600	600	25	250	35	-	1.3	1.5	35	5	5	125	MP
BTB24C-600BW	TO-220C	No Ins.	600	600	25	250	50	-	1.3	1.5	35	5	5	125	MP
BTB20D-800CW	TO-263	No Ins.	800	800	20	200	35	-	1	1.4	28	5	5	125	MP
BTB20D-800BW	TO-263	No Ins.	800	800	20	200	50	-	1	1.4	28	5	5	125	MP
BTA12A-1000TW	TO-220A	Ins.	1000	1000	12	120	5	-	1.5	1.5	17	5	5	125	MP
BTA12A-600BW	TO-220A	Ins.	600	600	12	120	50	-	1.5	1.5	17	5	5	125	MP
BTA12A-800TW	TO-220A	Ins.	800	800	12	120	5	-	1.5	1.5	17	5	5	125	MP
BTA12A-800SW	TO-220A	Ins.	800	800	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT16R-800BW	TO-262	No Ins.	800	800	16	160	50	-	1.3	1.55	22.5	5	5	125	MP
BT16D-800BW	TO-263	No Ins.	800	800	16	160	50	-	1.3	1.55	22.5	5	5	125	MP
BT16C-800BW	TO-220C	No Ins.	800	800	16	160	50	-	1.3	1.55	22.5	5	5	125	MP
BTB41J-1200BW	TO-3P	No Ins.	1200	1200	40	400	50	-	1.3	1.55	60	10	10	125	MP
BTB24C-800TW	TO-220C	No Ins.	800	800	25	250	5	-	1.3	1.5	35	5	5	125	MP
BTB24C-800SW	TO-220C	No Ins.	800	800	25	250	10	-	1.3	1.5	35	5	5	125	MP
BTB04S-800SW	TO-252	No Ins.	800	800	4	40	10	-	1.5	1.55	5.5	5	5	125	MP
BTA41T-800SW	TO-3P	Ins.	800	800	40	250	10	-	1.3	1.5	60	5	5	125	MP
BTA41T-800CW	TO-3P	Ins.	800	800	40	250	35	-	1.3	1.5	60	5	5	125	MP
BTA20A-600CW	TO-220A	Ins.	600	600	20	200	35	-	1.3	1.5	28	10	10	125	MP
BTA12A-600CW	TO-220A	Ins.	600	600	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12B-600CW	TO-220B	No Ins.	600	600	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12B-600BW	TO-220B	No Ins.	600	600	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12B-800TW	TO-220B	No Ins.	800	800	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12B-800SW	TO-220B	No Ins.	800	800	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12B-800CW	TO-220B	No Ins.	800	800	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12B-800BW	TO-220B	No Ins.	800	800	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12B-1000TW	TO-220B	No Ins.	1000	1000	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12B-1000SW	TO-220B	No Ins.	1000	1000	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12B-1000CW	TO-220B	No Ins.	1000	1000	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12B-1000BW	TO-220B	No Ins.	1000	1000	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12B-1200TW	TO-220B	No Ins.	1200	1200	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12B-1200SW	TO-220B	No Ins.	1200	1200	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12B-1200CW	TO-220B	No Ins.	1200	1200	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12B-1200BW	TO-220B	No Ins.	1200	1200	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12B-1600TW	TO-220B	No Ins.	1600	1600	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12B-1600SW	TO-220B	No Ins.	1600	1600	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12B-1600CW	TO-220B	No Ins.	1600	1600	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12B-1600BW	TO-220B	No Ins.	1600	1600	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12C-600TW	TO-220C	No Ins.	600	600	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12C-600SW	TO-220C	No Ins.	600	600	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12C-600CW	TO-220C	No Ins.	600	600	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12C-600BW	TO-220C	No Ins.	600	600	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12C-800TW	TO-220C	No Ins.	800	800	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12C-800SW	TO-220C	No Ins.	800	800	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12C-800CW	TO-220C	No Ins.	800	800	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12C-800BW	TO-220C	No Ins.	800	800	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12C-1000TW	TO-220C	No Ins.	1000	1000	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12C-1000SW	TO-220C	No Ins.	1000	1000	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12C-1000CW	TO-220C	No Ins.	1000	1000	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12C-1000BW	TO-220C	No Ins.	1000	1000	12	120	50	-	1.5	1.5	17	5	5	125	MP

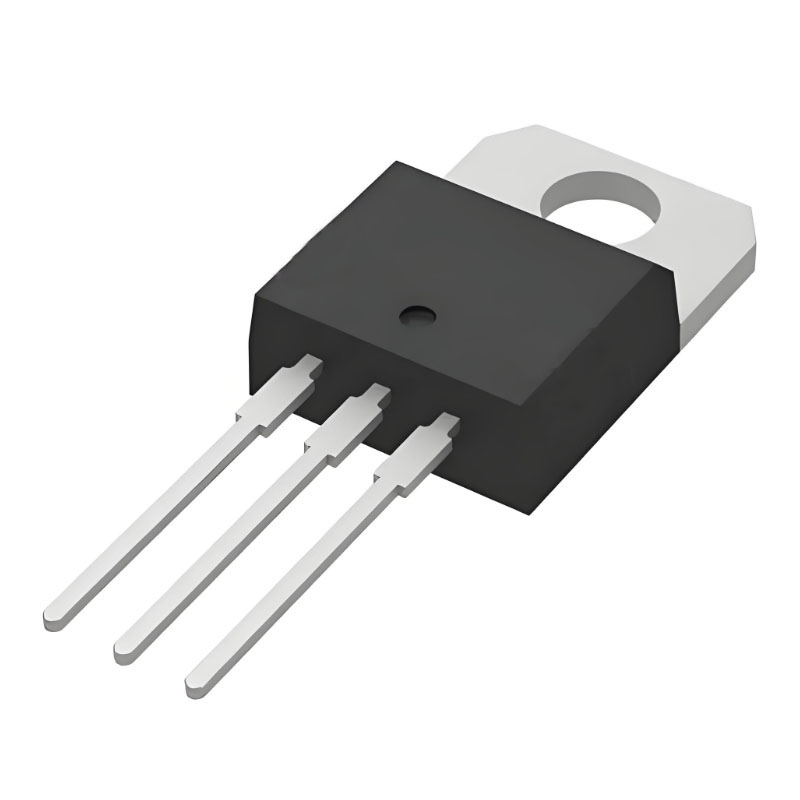

BT12C-1200TW	TO-220C	No Ins.	1200	1200	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12C-1200SW	TO-220C	No Ins.	1200	1200	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12C-1200CW	TO-220C	No Ins.	1200	1200	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12C-1200BW	TO-220C	No Ins.	1200	1200	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12C-1600TW	TO-220C	No Ins.	1600	1600	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12C-1600SW	TO-220C	No Ins.	1600	1600	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12C-1600CW	TO-220C	No Ins.	1600	1600	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12C-1600BW	TO-220C	No Ins.	1600	1600	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12D-600TW	TO-263	No Ins.	600	600	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12D-600SW	TO-263	No Ins.	600	600	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12D-600CW	TO-263	No Ins.	600	600	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12D-600BW	TO-263	No Ins.	600	600	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12D-800TW	TO-263	No Ins.	800	800	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12D-800SW	TO-263	No Ins.	800	800	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12D-800CW	TO-263	No Ins.	800	800	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12D-800BW	TO-263	No Ins.	800	800	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12D-1000TW	TO-263	No Ins.	1000	1000	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12D-1000SW	TO-263	No Ins.	1000	1000	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12D-1000CW	TO-263	No Ins.	1000	1000	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12D-1000BW	TO-263	No Ins.	1000	1000	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12D-1200TW	TO-263	No Ins.	1200	1200	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12D-1200SW	TO-263	No Ins.	1200	1200	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12D-1200CW	TO-263	No Ins.	1200	1200	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12D-1200BW	TO-263	No Ins.	1200	1200	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12D-1600TW	TO-263	No Ins.	1600	1600	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12D-1600SW	TO-263	No Ins.	1600	1600	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12D-1600CW	TO-263	No Ins.	1600	1600	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12D-1600BW	TO-263	No Ins.	1600	1600	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12F-600TW	TO-220F	No Ins.	600	600	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12F-600SW	TO-220F	No Ins.	600	600	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12F-600CW	TO-220F	No Ins.	600	600	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12F-600BW	TO-220F	No Ins.	600	600	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12F-800TW	TO-220F	No Ins.	800	800	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12F-800SW	TO-220F	No Ins.	800	800	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12F-800CW	TO-220F	No Ins.	800	800	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12F-800BW	TO-220F	No Ins.	800	800	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12F-1000TW	TO-220F	No Ins.	1000	1000	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12F-1000SW	TO-220F	No Ins.	1000	1000	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12F-1000CW	TO-220F	No Ins.	1000	1000	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12F-1000BW	TO-220F	No Ins.	1000	1000	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12F-1200TW	TO-220F	No Ins.	1200	1200	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12F-1200SW	TO-220F	No Ins.	1200	1200	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12F-1200CW	TO-220F	No Ins.	1200	1200	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12F-1200BW	TO-220F	No Ins.	1200	1200	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12F-1600TW	TO-220F	No Ins.	1600	1600	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12F-1600SW	TO-220F	No Ins.	1600	1600	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12F-1600CW	TO-220F	No Ins.	1600	1600	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12F-1600BW	TO-220F	No Ins.	1600	1600	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12R-600TW	TO-262	No Ins.	600	600	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12R-600SW	TO-262	No Ins.	600	600	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12R-600CW	TO-262	No Ins.	600	600	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12R-600BW	TO-262	No Ins.	600	600	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12R-800TW	TO-262	No Ins.	800	800	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12R-800SW	TO-262	No Ins.	800	800	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12R-800CW	TO-262	No Ins.	800	800	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12R-800BW	TO-262	No Ins.	800	800	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12R-1000TW	TO-262	No Ins.	1000	1000	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12R-1000SW	TO-262	No Ins.	1000	1000	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12R-1000CW	TO-262	No Ins.	1000	1000	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12R-1000BW	TO-262	No Ins.	1000	1000	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12R-1200TW	TO-262	No Ins.	1200	1200	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12R-1200SW	TO-262	No Ins.	1200	1200	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12R-1200CW	TO-262	No Ins.	1200	1200	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12R-1200BW	TO-262	No Ins.	1200	1200	12	120	50	-	1.5	1.5	17	5	5	125	MP
BT12R-1600TW	TO-262	No Ins.	1600	1600	12	120	5	-	1.5	1.5	17	5	5	125	MP
BT12R-1600SW	TO-262	No Ins.	1600	1600	12	120	10	-	1.5	1.5	17	5	5	125	MP
BT12R-1600CW	TO-262	No Ins.	1600	1600	12	120	35	-	1.5	1.5	17	5	5	125	MP
BT12R-1600BW	TO-262	No Ins.	1600	1600	12	120	50	-	1.5	1.5	17	5	5	125	MP

MOSFET

小信号MOS
低压MOS (20V-85V)
中压MOS（100-250V)

高压MOS（500-900V)
VD-MOS SJ-MOS

N+P-MOS(12-300V)
Dual N-Channel MOS Dual P-Channel MOS (N+P)-Channel MOS Half-bridge MOS

VD-MOS SJ-MOS

Dual N-Channel MOS Dual P-Channel MOS (N+P)-Channel MOS Half-bridge MOS

可控硅

双向可控硅
三象限双向可控硅  四象限双向可控硅

单向可控硅

三象限双向可控硅  四象限双向可控硅

二极管

标准整流二极管
快恢复二极管
高效二极管
超快恢复二极管
肖特基二极管
LOW VF 肖特基二极管
开关二极管
稳压管二极管
光伏二极管
快恢复高压二极管

桥式整流器

标准桥式整流器
快恢复桥式整流器
LOW VF桥式整流器
快恢复+LOW VF桥式整流器
逆变桥式整流器
高雷击桥式整流器
肖特基桥式整流器
三相桥式整流器

三极管

小信号三极管
功率型三极管
数字三极管
高压功率三极管

防护器件

瞬态电压抑制二极管（TVS)
静电保护二极管（ESD)
晶闸管浪涌抑制器（TSS)
触发二极管(DIAC)

IGBT

IGBT单管
IGBT模块

SiC

SiC-二极管
SiC-MOS管

GaN

GaN-MOS管

IPM

光伏模块

稳压电路

低压差线性稳压器（LDO)
并联式电压基准
三端线性稳压器

AC-DC

DC-DC

同步整流

4英寸

GPP-STD Die
GPP-FRD Die
GPP-HRD Die
GPP-SFD Die

5英寸

GPP-STD Die
GPP-FRD Die
GPP-HRD Die
GPP-SFD Die
